Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9

Brand Name : SY

Model Number : GW243

Certification : FCC/CE/ROSH

Place of Origin : China

MOQ : 1

Price : US$20-US$25/PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 pieces per week

Delivery Time : 5-8 working days

Packaging Details : Standard color box or customized design color box packaging

Antenna : 2 x External Antenna

Button : WPS/Reset Button

Data Rate : 150 Mbps

Frequency Band : 2.4GHz

Interface : 1 x 10/100Mbps WAN/LAN Port, 1 x USB 2.0 Port

LED Indicator : Power, WAN, LAN, WLAN, Signal Strength

Network Standard : 4G LTE

Operating Temperature : 0℃~40℃

Power Supply : DC 12V/1A

Product Name : Commercial 4G Router

Security : WPA-PSK/WPA2-PSK, WPA/WPA2

Storage Temperature : -40℃~70℃

Wi-Fi Standard : 802.11 b/g/n

Contact Now

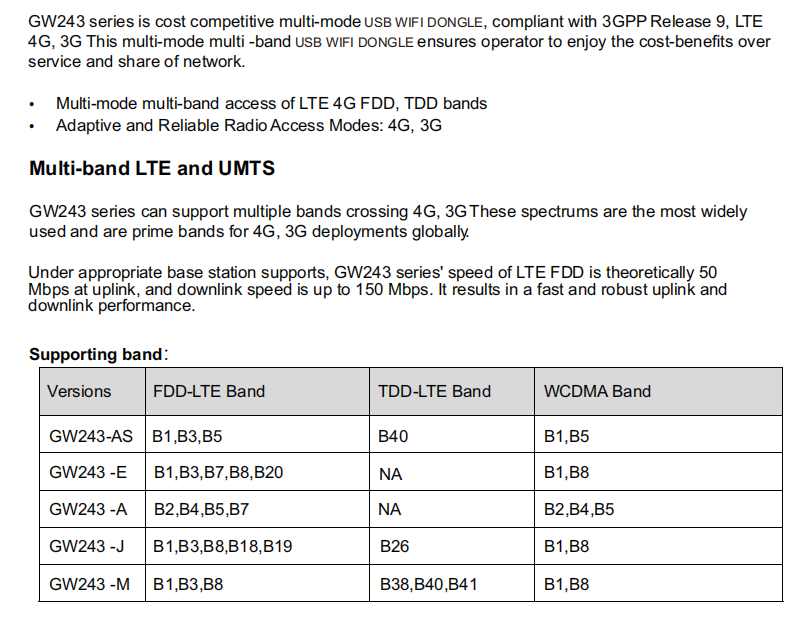

Cost Competitive Multi-mode USB Wifi Dongle, Compliant with 3GPP Release 9


Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Hardware Specifications
Feature Description Comments
CPU ZX297520V3
Standard 3GPP Release 9
UE Category CAT.4
Wi-Fi 2.4 GHz 802.11 b/g/n compliant
LED Indicators Wi-Fi/Signa
SIM 4FF USIM support 1.8V / 3.0V
Power Supply

USB input: 5v-1a,
electric power 2W


Optional.
Extra cost required



ID Specifications
Dimension
88*28*12.3mm
Weight
25g



RF Specifications
Feature
Capability
Comments
Min Typ Max Unit
LTE Max Transmit Power   22   dBm Compliant with 3GPP with margin
LTE Receiver Sensitivity (FDD) -93     dBm Compliant with 3GPP with margin
LTE Antenna Support
Frequency
 703   2690 MHZ
Wi-Fi Channel @ 2.4GHz
Ch 1~13

2.4GHz
Wi-Fi Channel BW

20/40
   MHZ
Wi-Fi Power level   14   dBm 11b
  13   dBm 11g
  11   dBm 11n
Wi-Fi Sensitivity 11n
≤- 69
 dBm



EMC Specifications
Feature Standard Capability Comments
Immunity to ESD EN 61000 -4-2 Compliant Air +/8 KV; Contact +/-4KV
Immunity to burst EN 61000 -4-4 Compliant L/N/L-N+/-1KV
Immunity to surge EN 61000 -4-5 Compliant L-N+/-1KV
Immunity to Conducted
RF disturbances		 EN 61000 -4-6 Compliant 0.15-80 MHz
Immunity to Voltage Dips
and short interruption		 EN 61000 -4-11 Compliant
Harmonic current emissions EN 61000 -3-2 Compliant
Voltage fluctuations and
flicker		 EN 61000 -3-3 Compliant
Conducted emission test,
class-B		 EN 55022 Compliant 0.15-30 MHz

Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9

Environmental Specifications:
Operating temperatur: 0 ~ 40℃
Storage temperature: -20 ~ 45℃
Operating humidity: 10 ~ 85%
Storage humidity: 10 ~ 85%
Recommend Products
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Company Profile
Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh
Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE.
Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in
Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine.
Sanyi warmly welcome everybody joining in and build win-win cooperation.
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Why Choose Us
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.

Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
